Vacuum Circuit Breaker
Medium-Voltage Vacuum Circuit Breakers for Power Distribution & Switchgear Protection
Medium-voltage vacuum circuit breakers interrupt fault currents and manage load switching within electrical distribution networks. Enclosing contact assemblies inside hermetically sealed ceramic or glass vacuum interrupters, these units extinguish electrical arcs instantly in a high vacuum medium. Built for high-frequency switching operations and severe industrial duty, they protect transformers, generators, and cable feeders against overloads and short circuits without releasing arc flash hazards or requiring dielectric oil maintenance.
-
![General Purpose Breaker]()
General Purpose BreakerOur General Purpose Breaker is a cost-effective product that balances performance, price, and versatility. It meets the protection needs of most conventional electrical systems. This product uses...read more -
![Heavy Industrial Breaker]()
Heavy Industrial BreakerOur Heavy Industrial Breaker is a heavy-duty protection device built for extreme working conditions and high-power loads. It represents the highest standards in structural design, material...read more -

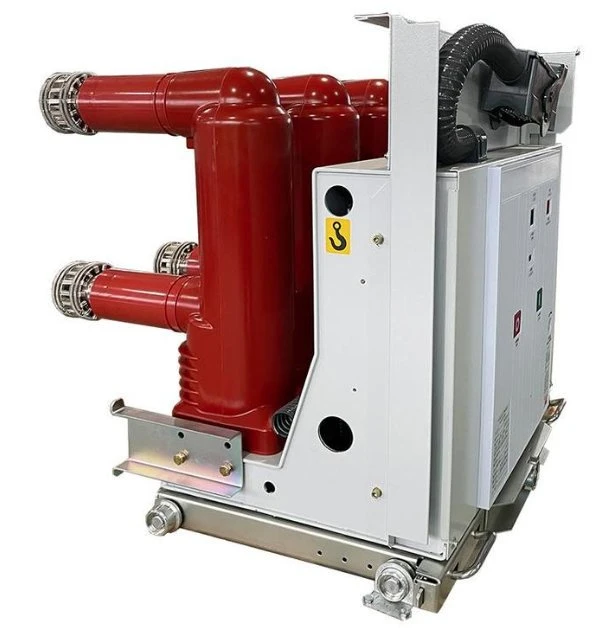

![Industrial Circuit Breaker]()
Industrial Circuit BreakerOur Industrial Circuit Breaker is a specialized protection product developed for the high loads, frequent operation, and complex conditions of industrial manufacturing. Compared to residential or...read more -
![High Voltage Protection Device]()
High Voltage Protection DeviceOur High Voltage Protection Device is a comprehensive protection solution designed for medium and high-voltage power systems. It integrates multiple functions including overcurrent, instantaneous...read more -
![Insulated Circuit Breaker]()
Insulated Circuit BreakerOur Insulated Circuit Breaker features systematically enhanced insulation performance. It is a professional protection solution designed for harsh electrical environments like high humidity, heavy...read more -
![Protection Circuit Breaker]()
Protection Circuit BreakerOur Protection Circuit Breaker is an intelligent electrical protection device that integrates multiple protection functions. Unlike traditional breakers that only provide overload and...read more -
![Safety Circuit Breaker]()
Safety Circuit BreakerSafety is the most important thing in any electrical system. Our Safety Circuit Breaker is designed with this principle as its core. This product adds multiple safety redundancy features on top of...read more -
![Heavy Duty Breaker]()
Heavy Duty BreakerOur Heavy Duty Breaker is specifically designed for tough working conditions and high-intensity use. It is the ideal protection choice for heavy industrial electrical systems. This product has...read more -
![High Power Breaker]()
High Power BreakerOur High Power Breaker is a protection solution made specifically for high-voltage, high-power electrical systems. This product has strong power-handling capabilities. It can quickly and reliably...read more -
![High Current Breaker]()
High Current BreakerOur High Current Breaker is your most reliable choice when standard breakers cannot handle high current demands. This product is designed for high-load power systems with excellent...read more -
![Long Life Circuit Breaker]()
Long Life Circuit BreakerOur Long Life Circuit Breaker is specially designed for applications where replacement is difficult and long-term stability is critical. We made material selection and structural optimization the...read more -
![Durable Circuit Breaker]()
Durable Circuit BreakerOur Durable Circuit Breaker is designed to handle high-frequency switching and heavy use. We know that equipment durability directly affects your maintenance costs and system availability....read more
Product Types
Fixed-Type Vacuum Circuit Breakers:
Permanently mounted within switchgear enclosures, bolted directly to internal copper busbars. Utilized where fixed installation space is optimized and circuit breaker withdrawal is unnecessary.
Withdrawable (Drawout) Type Circuit Breakers:
Mounted on a standardized truck chassis with plug-in primary and secondary disconnects. Allows rapid racking in and out for maintenance isolation, minimizing system downtime during routine inspections.
Indoor Side-Mounted VCBs:
Engineered with compact pole configurations tailored for narrow or specialized secondary distribution switchgear cabinets (such as ring main units and compact box substations).
Permanent Magnetic Actuator VCBs:
Replaces conventional spring-operated mechanisms with bi-stable permanent magnets and electronic controllers, reducing mechanical moving parts to under five components for enhanced reliability.
Key Specifications
|
Parameter |
Technical Range / Specification |
|
Rated Voltage |
12kV, 24kV, 40.5kV |
|
Rated Normal Current |
630A, 1250A, 2500A, 3150A |
|
Rated Short-Circuit Breaking Current |
20kA, 25kA, 31.5kA, 40kA, 50kA |
|
Rated Short-Time Withstand Current |
20kA to 50kA (3 seconds duration) |
|
Mechanical Endurance |
10,000 to 30,000 operating cycles |
|
Lightning Impulse Withstand Voltage |
75kV to 185kV (Peak) |
|
Pole Distance |
150mm, 210mm, 275mm, 310mm |
|
Operating Mechanism |
Spring-charged manual/motorized or Permanent Magnetic Actuator |
Technical Features & Performance
Hermetically Sealed Vacuum Interrupters:
Ceramic envelopes fused with high-purity copper-chromium contact materials ensure rapid dielectric recovery following arc extinction, preventing re-ignition across contacts during fault clearing.
Low Resistance Current Paths:
Silver-plated main conductive joints and optimized contact pressure maintain low micro-ohm contact resistance, minimizing Joule heating losses during continuous full-load operation.
Modular Spring Operating Mechanism:
Energy-storing spring mechanism features an anti-pumping device and a mechanical trip-free mechanism, ensuring consistent opening and closing speeds independent of operator control input.
High Short-Circuit Withstand Capability:
Withstands multi-cycle thermal and electrodynamic forces during heavy fault interruptions without structural deformation or loss of vacuum integrity.
Primary & Secondary Switchgear Panels: Overload and short-circuit protection for incoming and outgoing feeders in industrial substations.
Renewable Energy Generation: Grid connection and fault isolation in solar photovoltaic combiner stations and wind turbine collector substations.
Data Center Power Distribution: High-reliability circuit protection safeguarding mission-critical uninterruptible power supply (UPS) distribution loops.
Heavy Industrial Plants: Motor starting control and transformer protection in steel mills, chemical processing facilities, and mining operations.
Product Selection Guide
Verify System Voltage and Current:
Match the breaker's rated voltage and normal continuous current rating to the maximum operating parameters of the electrical network.
Calculate Fault Current Levels:
Ensure the rated short-circuit breaking current (kA) exceeds the prospective short-circuit current calculated at the switchgear installation busbar.
Select Installation Configuration:
Choose withdrawable drawout types for rapid service replacement or fixed types based on switchgear enclosure architecture and space constraints.
Confirm Control Voltage Requirements:
Specify auxiliary control power voltages (e.g., 110VDC, 220VDC, or 230VAC) for closing coils, shunt trip releases, and spring-charging motors.
Vacuum Brazing Furnace Processing: Ceramic-to-metal vacuum interrupter components undergo controlled atmosphere high-temperature brazing to secure absolute hermetic sealing.
High-Vacuum Leak Detection: Every interrupter is tested using mass spectrometer helium leak detectors to identify microscopic seal defects prior to assembly.
Automated Mechanical Endurance Testing: Completed circuit breaker poles undergo routine testing on automated test rigs to measure operating velocity, contact bounce time, simultaneity of phase closure, and trip travel distance.
High-Voltage Dielectric Screening: Power-frequency withstand voltage tests and partial discharge measurements are performed on every production batch to verify internal insulation performance.
Compliance Verification: Manufacturing processes operate under ISO 9001 quality management systems. Product designs comply with IEC 62271-100, GB/T 1984, and IEEE C37.09 standards.
Customization / OEM & ODM
Dimensional Interfacing:
Customized interlocking mechanical pushrods, chassis drawout rail dimensions, and auxiliary switch contact configurations to match existing proprietary switchgear frames.
Control Circuit Integration:
Tailored secondary wiring harnesses, customized plug-in aviation connectors, and specific undervoltage release response thresholds.
Terminal & Busbar Adaptations:
Silver-plated copper terminal riser extensions bent or punched to match specific busbar orientations inside client enclosure layouts.
